Debugging C with LLDB

This tutorial introduces debugging C code with LLDB (the Low-Level Debugger) via VS Code's Run and Debug functionality. It is also possible to use lldb via the command line using bash terminals in the R Dev Container.

1. Open an R Terminal Running R Built from Source

If necessary, run which_r to switch to a version of R you have built following the Building R tutorial.1

Then open an R terminal by clicking on R: (not attached) in the status bar, or running R: Create R terminal from the VS Code command palette.

2. Attach LLDB to the Running R Process

Find the process ID (PID) of your R session, by calling Sys.getpid() in R:

Sys.getpid()

The PID is also shown after the R version number in the status bar (you may need to deselect some of the statuses shown to see the status for R).

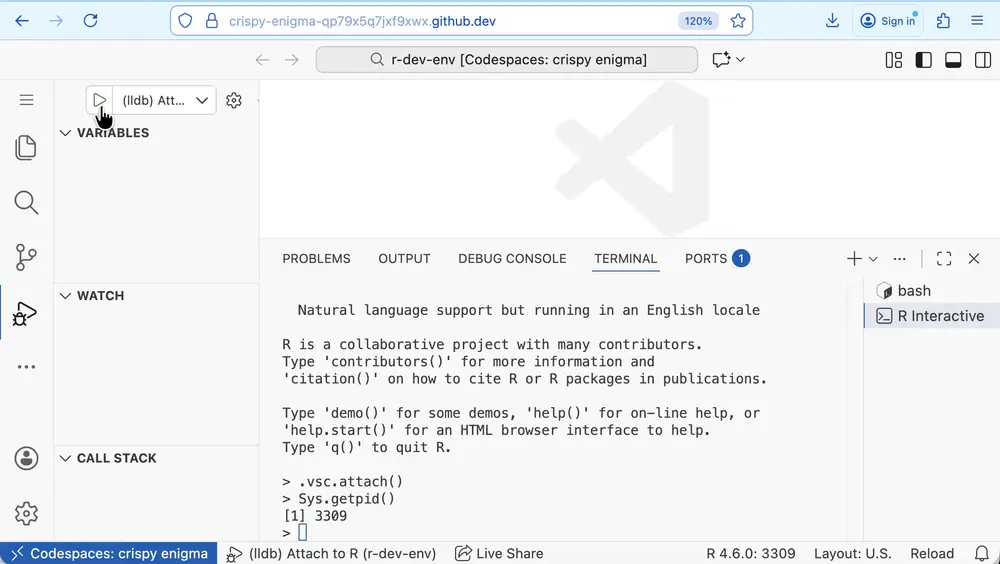

Open the "Run and Debug" sidebar and click the green arrow next to the drop-down box at the top.

alt text

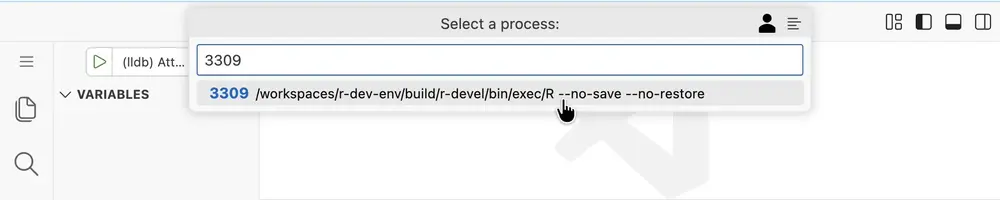

This will open a dialog for you to enter the PID:

alt text

When you enter the PID the corresponding process is shown underneath - click on it to select that process for LLDB to attach to.

3. Set a Breakpoint in C Code

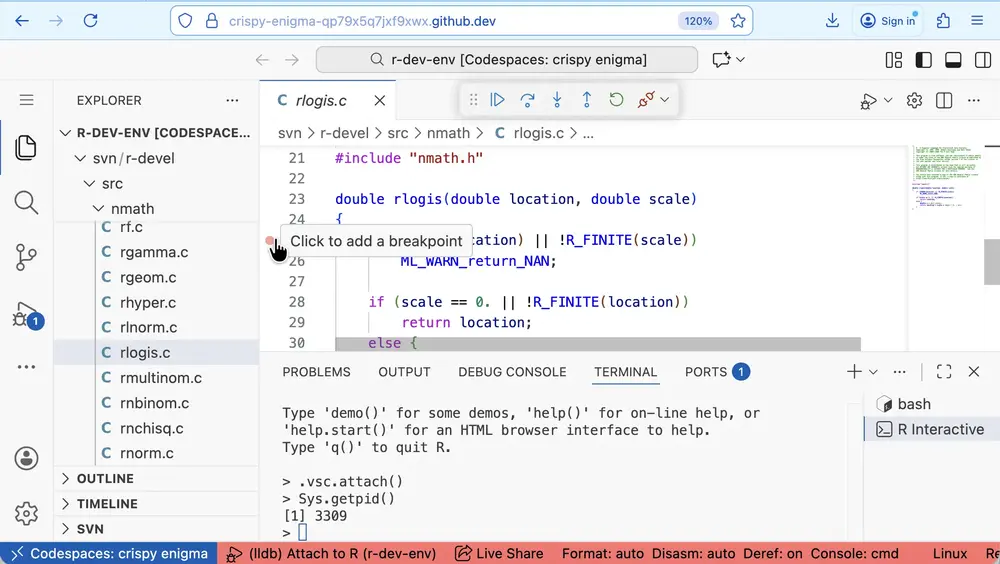

For example, to debug the rlogis C function, open $TOP_SRCDIR/src/nmath/rlogis.c and set a breakpoint by clicking to the left of the line number corresponding to the first line in the body of the function:

alt text

4. Trigger the Debugger

In the R terminal, run the rlogis() command, which calls the rlogis C function:

rlogis(1)

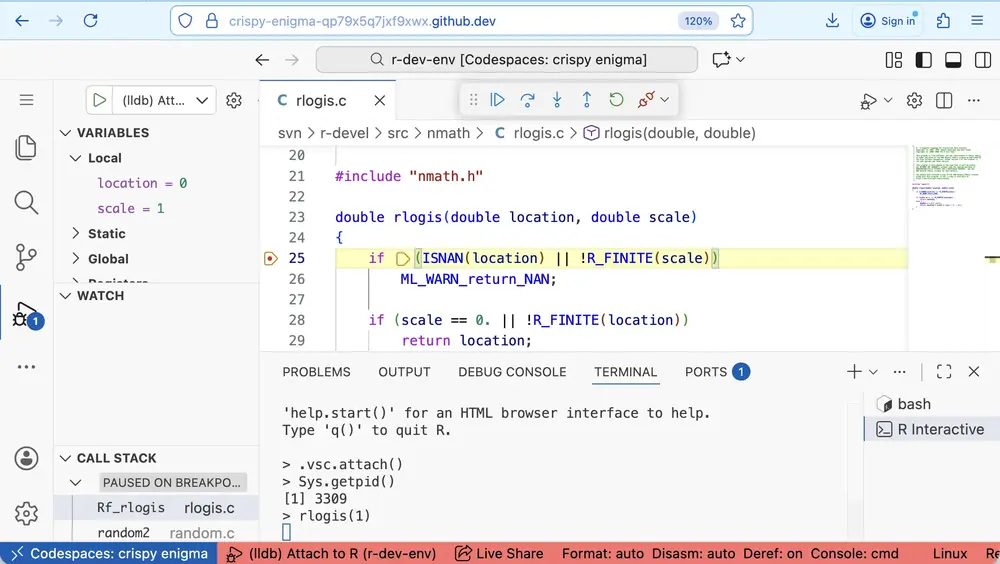

This will trigger the LLDB debugger and pause at the line where the breakpoint was added:

alt text

5. Using the Debugger Toolbar

After pausing at a breakpoint, use the LLDB toolbar buttons and commands to control execution:

  • Continue/Pause (▷ in blue, or F5): Resume running until the next breakpoint or the end of the call from R. This changes to a pause button (⏸ in blue) when the code is running, allowing you to pause execution.
  • Step Over (↷ in blue, or F10): Run the current line of code and stop at the next line.
  • Step Into (↓ in blue, or F11): Run the current line of code and step into the next function called to start debugging the code in that function.
  • Step Out (↑ in blue, or Shift+F11): Run the remainder of the current function and stop at the point where the function was called. This will step out through several internal C functions in the call stack - use Continue instead to finish and return to R.
  • Restart (⟲ in green, or Cmd/Ctrl+Shift+F5): Start again from the beginning.
  • Disconnect (🔌 in red, or Shift+F5): Detach the debugger but keep R running.
  • Stop (access from more controls): Teminate the debugging session and the R process (closes the R terminal).

6. Inspect Variables and Expressions

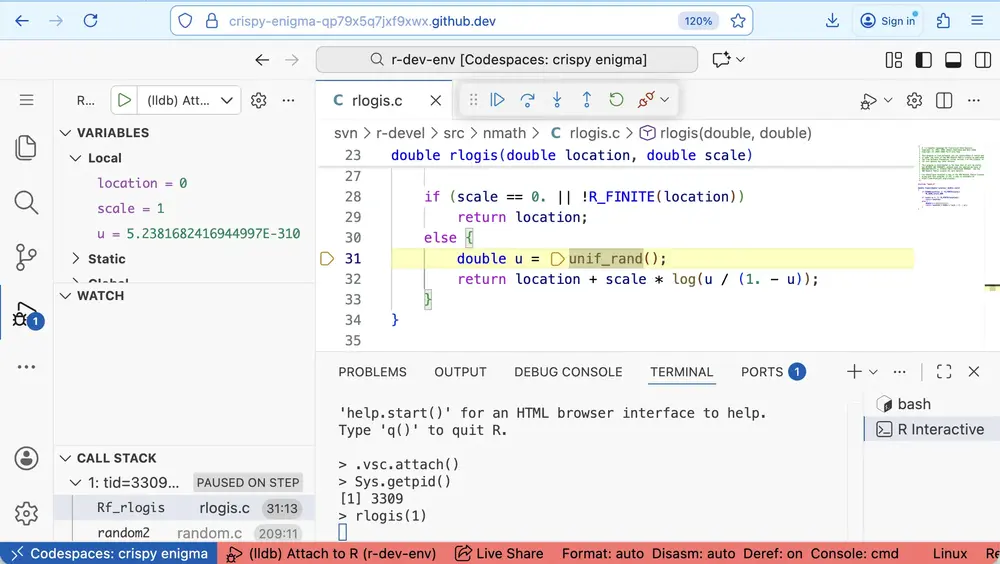

The Variables sub-panel of the Run and Debug side panel shows the current value of variables in the current environment. This is particularly helpful for local variables defined in the function, e.g. before u is defined:

alt text

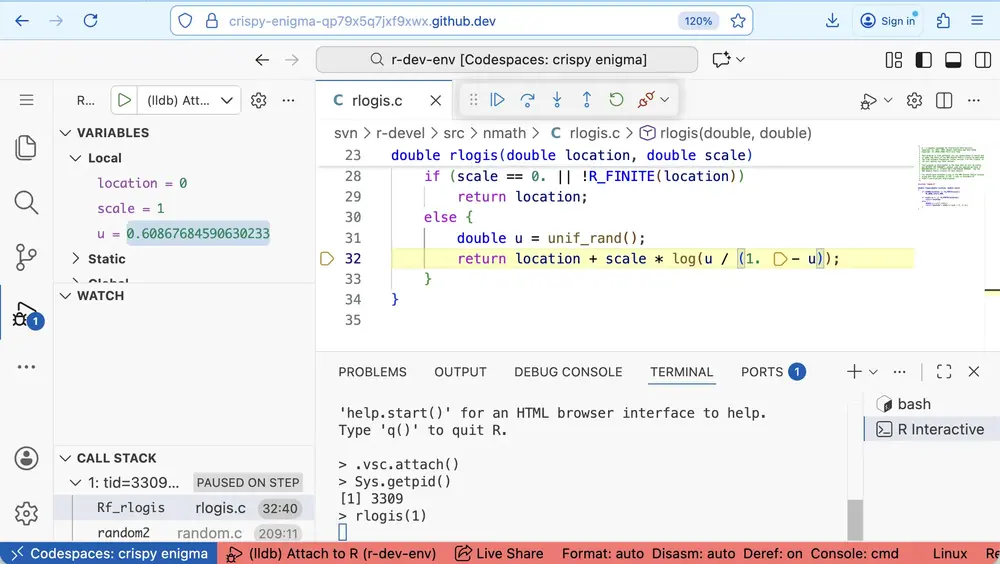

and after

alt text

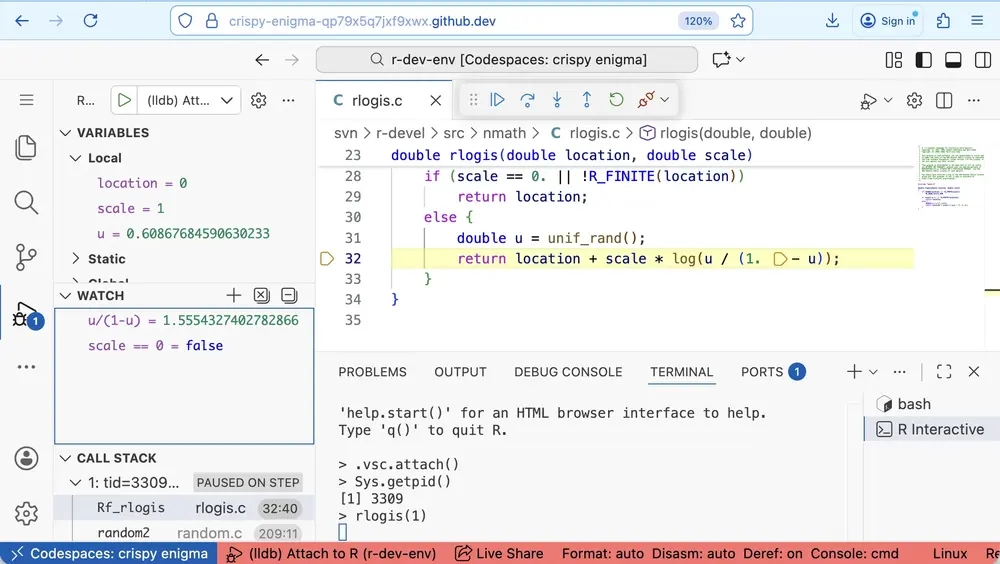

In the Watch sub-panel we can define expressions to watch as we step through the code. For example, we might watch u / (1 - u) and scale == 0:

alt text

Note these expressions can only use simple operations, for example, we can't watch log (u / (1 - u)) as this uses the log function.

The watch panel can also be used to dereference pointers (e.g. *ptr) or access elements of an array (e.g. array[5]).

7. Using the Debug Console

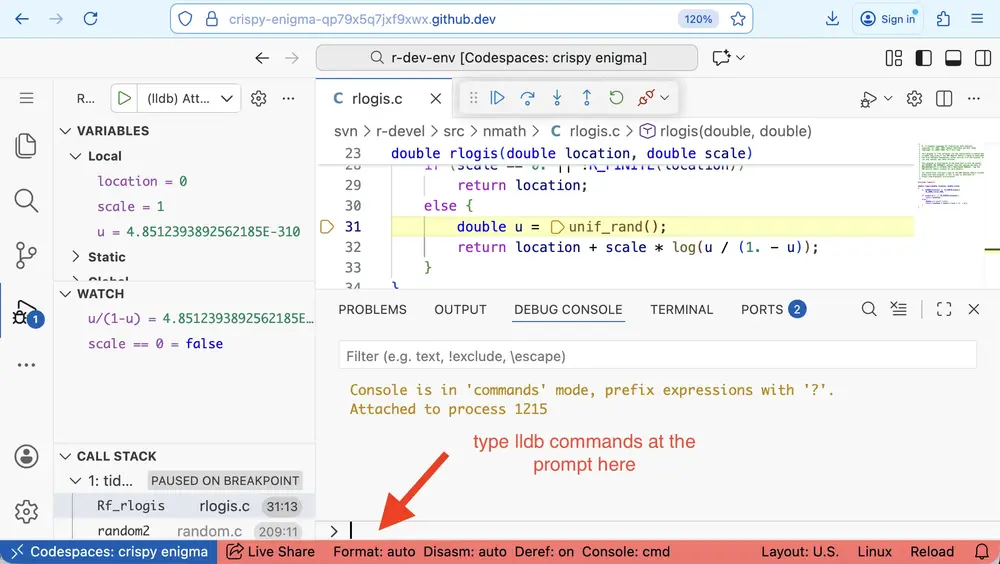

Using the Debug Console, we can interact with LLDB via the command line, enabling more advanced debugging.

alt text

Stepping through the code

These commands are equivalent to the debug toolbar buttons

  • c continue
  • n next (Step Over)
  • s step into

These commands are equivalent to selecting function names in the Call Stack sub-panel of the Run and Debug panel.

  • up shows the next level up in the call stack (also, down)
Setting breakpoints
  • break set -n FUNC_NAME to set a breakpoint at the start of the function, e.g.
  • break set -n C_plotXY to set a breakpoint in C_plotXY
  • break set -n Rf_logis to set a breakpoint in rlogis2
  • break set -l 31 sets a breakpoint at line 31 of the current file
  • breakpoint delete deletes all breakpoints
Values, expressions and calls
  • print x prints x, where x is a simple expression with the same restrictions as for the Watch sub-panel
  • expr x evaluates C expression x. For example
  • Modify the value of objects: expr u = 0.2
  • Call functions, defining the return type: expr (double) log(u / (1 - u))

  • call FUNC_NAME() runs a C function in the debugger. We can use this to run C functions defined in R2, e.g.

    call Rf_rgamma(10.0 / 2.0, 2.0)

    (double) $2 = 10.161318250826971

    call Rf_PrintValue(x)

    Note the second call asks R to print the value of x, so the output will appear in the R terminal, not the debug console. This can be useful for printing SEXP objects.

  1. Debugging C code requires R to have been built with CFLAGS="-g -O0". This will not be the case for binary installs (such as the version of R pre-installed in the container) or R built following the Building R tutorial for R Dev Container ≤ v0.3. ↩

  2. C function names in R are internally prefixed (usually with Rf_ or R_) to avoid name collisions. If the name in the function definition does not have a prefix, this means a header file maps the unprefixed name to a prefixed name. Search the R sources for #define FUNC_NAME to find the mapping, e.g. #define rlogis Rf_logis in $TOP_SRCDIR/src/include/Rmath.h0.in tells us we must use Rf_logis as the function name in lldb commands like break set -n and call. ↩↩
